INCORR aluminium alloy anodes are cast from the highest purity aluminium ingot to conform with the following material composition:
| Element | Composition (Weight %) |
| Zinc | 3.0 - 5.0 |
| Indium | 0.01 - 0.02 |
| Titanium | 0.02 - 0.05 |
| Silicon | 0.15 max. |
| Iron | 0.12 max. |
| Copper | 0.006 max. |
| Other impurities | 0.02 each max. |
| Aluminium | Remainder |
Note: Special chemical composition could be made on request.
| Anode open circuit potential vs Ag/AgCl ref. cell | -1.05 to -1.1 volt |
| Electrochemical capacity in seawater @ 26oC | 2540 to 2730 Amp-hr/kg |
| Consumption rate in seawater @ 26oC | 3.21 to 3.44 kg/Amp-yr |
| Efficiency | 85% to 92% |

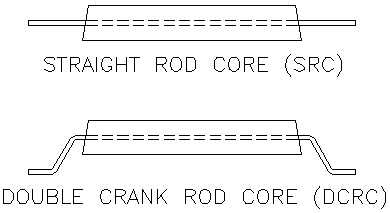

ALUMINIUM STRUCTURAL ANODE
| Anode Type | Alloy
Weight
(kg) |
Gross
Weight
(kg) |
Anode
Dimensions
L x W x T (mm) |
Core
Dimensions
L x Diameter (mm) |
| ICS 250 ASR/DCR | 25 | 28 | 900 X (89 + 114) X 103 | 1500 X 20 |
| ICS 300 ASR/DCR | 30 | 33 | 1100 X (89 + 114) X 102 | 1600 X 20 |
| ICS 400 ASR/DCR | 40 | 44 | 1500 X (89 + 114) X 102 | 2000 X 20 |
| ICS 500 ASR/DCR | 50 | 53 | 950 X (126 + 154) X 140 | 1500 X 20 |
| ICS 600 ASR/DCR | 60 | 65 | 1500 X (126 + 148) X 110 | 2000 X 20 |
| ICS 700 ASR/DCR | 70 | 74 | 1500 X (126 + 150) X 125 | 2000 X 20 |
| ICS 800 ASR/DCR | 80 | 84 | 1500 X (126 + 154) X 140 | 2000 X 20 |
| ICS 1000 ASR/DCR | 100 | 108 | 1500 X (150 + 178) X 150 | 2000 X 25 |
| ICS 1100 ASR/DCR | 110 | 118 | 1500 X (150 + 182) X 165 | 2000 X 25 |
| ICS 1400 ASR/DCR | 140 | 148 | 1500 X (140 + 206) X 200 | 2000 X 25 |
| Notes: | - Types and dimensions illustrated represent only part of our standard sizes. |
| - Non standard anodes of other weights and dimensions or special cores are available on request. |
ALUMINIUM SHIPPING ANODE
| Anode Type | Alloy
Weight
(kg) |
Gross
Weight
(kg) |
Anode
Dimensions
L x W x T (mm) |
Core
Dimensions
L x W X T (mm) |
| ICS 9 AWB | 0.9 | 1.1 | 165 X 70 X 24 | 240 X 25 X 3 |
| ICS 13 AWB | 1.3 | 1.5 | 102 X 152 X 38 | 240 X 25 X 3 |
| ICS 16 AWB | 1.6 | 1.8 | 140 X 140 X 25 | 240 X 25 X 3 |
| ICS 40 AWB | 4.0 | 4.4 | 305 X 152 X 38 | 425 X 30 X 4 |
| ICS 70 AWB | 7.0 | 8.3 | 585 X 134 X 37 | 750 X 38 X 6 |
| ICS 105 AWB | 10.5 | 11.8 | 585 X 142 X 53 | 750 X 38 X 6 |
| ICS 140 AWB | 14.0 | 15.3 | 585 X 149 X 69 | 750 X 38 X 6 |
| ICS 213 AWB | 21.3 | 24.0 | 900 X 140 X 67 | 1100 X 50 X 6 |
| Notes: | - Types and dimensions illustrated represent only part of our standard sizes. |
| - Non standard anodes of other weights and dimensions or special cores are available on request. |
|
|

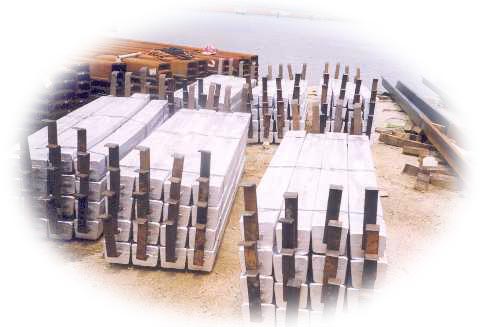

Click on thumbnail for photograph. |
