INCORR Mixed Metal Oxide Ribbon Anodes.
| Current output of Ribbon in FINE SAND: | 17 mA/m (5 mA/ft) when operating at an anode current density of 1.2 A/mē |
| Design Life: | 50 years plus when operating at an anode current density of 1.2 A/mē |
| Current output of Ribbon in CONCRETE: | 1.5 mA/m (0.45 mA/ft) when operating at an anode current density of 110 A/mē |
| Design Life: | 50 years plus when operating at an anode current density of 110 A/mē |
| RIBBON DIMENSIONS |
| Width: 0.25" (6.35 mm) |
| Thickness: 0.025" (0.635 mm) |
| Coil length: 500 ft (152 m) |
| Coil weight: 6 lbs (2.5 kg) |
| Surface area of ribbon: 0.014mē per metre |
| CONDUCTOR BAR DIMENSIONS |
| Width: 0.50" (12.7 mm) |
| Thickness: 0.035" (0.9 mm) |
| Coil length: 250 ft (75 m) |
| Coil weight: 10 lbs (4.5 kg) |
|

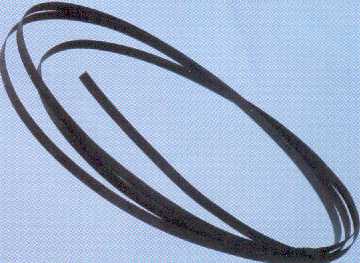

Click on thumbnail for photograph. |
