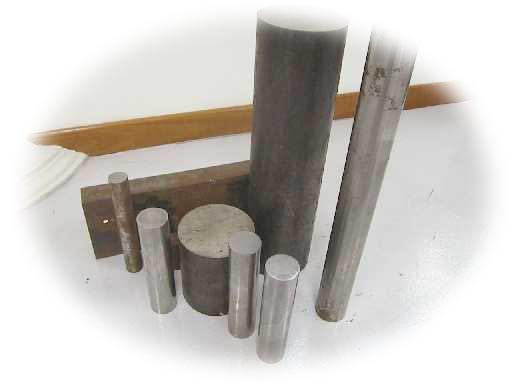

Click on thumbnail for photograph.
INCORR SOFT IRON ANODES
High Permeability Low Carbon Refined Iron
APPLICATIONS
Soft iron is suitable for use as sacrificial anodes for the protection of condensers & pumps in the electricity generation & shipping industries.
Also suitable for use in the manufacture of a wide variety of component parts of magnetic circuits carrying a direct flux.
Plus many other applications in the electrical and electronic industries.
CHEMICAL COMPOSITION
| Carbon | 0.03 % maximum |
| Silicon | 0.05 % maximum |
| Manganese | 0.20 % maximum |
| Sulphur | 0.02 % maximum |
| Phosphorous | 0.01 % maximum |
This specification can be maintained consistently from cast to cast. Heat treatment is necessary to guarantee specific electromagnetic properties if required.
STOCK SIZES
Improved delivery times can usually be offered when cutting from the following stock bar / plate sizes:
| ¾" (19.05 mm) diameter bar |
| 1" (25.40 mm) diameter bar |
| 1¼" (31.75 mm) diameter bar |
| 1½" (38.10 mm) diameter bar |
| 2" (50.80 mm) diameter bar |
| 2½" (63.50 mm) diameter bar |
| 3" (76.20 mm) diameter bar |
| 4" (101.60 mm) diameter bar |
| 5" (127.00 mm) diameter bar |
| 6" (152.40 mm) diameter bar |
| 7" (177.80 mm) diameter bar |
| 8" (203.20 mm) diameter bar |
| 36" x 36" x 1" thick plate |
| 36" x 36" x 40 mm thick plate |
Standard nominal stock bar length is 1524mm.
|
